How Do I Select the Correct Size Containment Bag for My Transformer?

Why Size Matters in Transformer Containment

The primary purpose of containment bags is to prevent oil leaks, spills, or hazardous materials—like PCBs—from contaminating the environment during handling, transport, or storage. If the bag is too small, it may not seal or support the weight of the unit. If it’s too large, the transformer may shift during movement, increasing the risk of damage or leakage.

Beyond fit, correct sizing also ensures the bag can accommodate closures, absorbent liners, and lifting features, all while maintaining safe load distribution.

Step 1: Measure Your Transformer Accurately

Before you can identify the right containment solution, you’ll need to gather detailed specifications of the transformer you plan to store or move. Record the following:

• Height, width, and depth of the transformer body
• Weight (including any oil or residual fluid)
• Dimensions of any attachments such as bushings, mounting brackets, or lifting hooks

Keep in mind that bag dimensions are usually listed by internal measurements, so you’ll want to allow some buffer space to accommodate closures and hoisting hardware. For heavy-duty needs, ensure the transformer’s weight does not exceed the load rating of the selected transformer oil containment bag.

Step 2: Consider Transformer Type and Shape

Different transformer types have different containment needs. The more closely a bag’s shape and design align with your transformer’s profile, the more effective it will be in preventing spills and facilitating transport.

Pole-Mounted Transformers

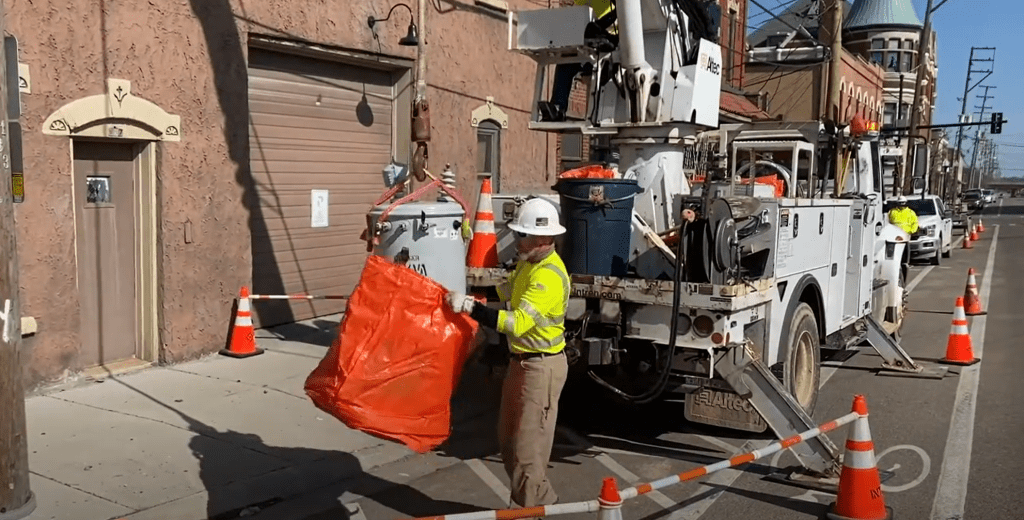

These are often cylindrical and relatively compact. A pole mount transformer containment bag is designed specifically for these units. It typically offers a snug vertical fit with features that enable secure wrapping and simplified field deployment.

Pad-Mounted Transformers

Larger and box-shaped, these transformers require bags with wide openings and reinforced bottoms. These bags often feature integrated support systems for lifting, storage, or transformer transport via forklift or crane.

PCB-Containing Transformers

If the unit is suspected or confirmed to contain PCBs, a PCB transformer containment bag is required. These are engineered for full encapsulation and often include extra sealing features to meet EPA and DOT standards for hazardous material containment.

Step 3: Match the Bag to the Use Case

The use case also plays a major role in selecting the correct bag size and type. Consider the following scenarios:

Field Containment

If your goal is rapid deployment during an emergency spill—such as a vehicle collision or storm-damaged pole—your team needs a utility pole containment bag that’s quick to install and reliable under pressure. These bags should be compact for easy storage and designed to fit standard transformer dimensions.

Storage

For long-term storage, especially outdoors, look for UV-resistant bags with room for airflow and drainage control. The bag must be large enough to allow secure sealing without stretching or stress points.

Transport

When transporting transformers across states or jurisdictions, it’s critical to use DOT approved containment bags. These bags meet the U.S. Department of Transportation’s packaging requirements for hazardous materials, including those with residual oil or PCB traces. Sizing here must also account for potential movement during transit and compatibility with rigging equipment.

Step 4: Consult Product Load Ratings and Design Features

Even if the dimensions seem like a match, be sure to review the load capacity of the bag. The dynamic forces involved in moving or lifting a transformer can be significant. Your selected bag should not only accommodate the transformer’s static weight but also withstand the stress of tilting, swinging, or sudden stops during transport.

Key design features to look for:

• Reinforced stitching and seams
• Integrated lifting straps or rigging points
• Closure systems (zippers, hook-and-loop, or seal flaps)
• Compatibility with liners or absorbent pads

Choosing a properly rated transformer containment bag ensures safer operations for your team and reduces the risk of failure.
